Gfp 363TH Printing United Show Special FREE SHIPPING
Order the Gfp 363TH 63" Top Heat Laminator during the Printing United 2026 promotion and receive FREE SHIPPING plus a FREE 54" x 30' starter roll of pressure-sensitive laminate. Valid on qualifying orders placed and shipped September 21 through October 23, 2026.
Product Overview

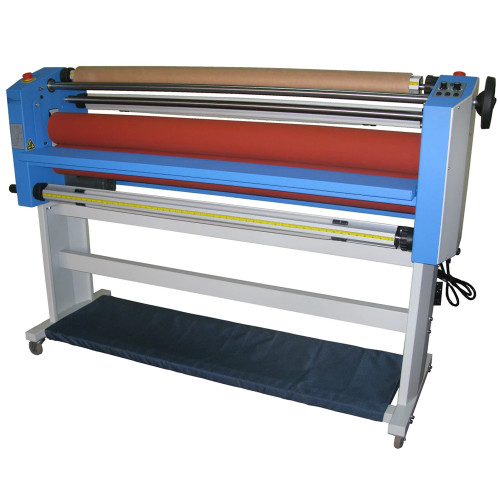

The GFP 363TH 63" Top Heat Laminator gives sign shops, print providers and graphics producers an affordable step into professional heat-assisted wide format finishing. Designed for pressure-sensitive overlamination, mounting and board pre-coating, the 363TH combines a 63" working width with top heat, speeds up to 20 ft/min and an integrated rear rewind for efficient roll-to-roll production.
Its straightforward controls, rugged construction, Quick-Grip film shafts and included stand and foot pedal make the GFP 363TH an excellent choice for shops that need dependable production capability without the cost and complexity of a more automated finishing system.
The GFP 363TH adds top heat up to 122°F to help improve the performance of pressure-sensitive overlaminates. Applying controlled heat at the roller nip promotes adhesive flow and bonding while helping reduce the silvering that can appear when laminate adhesive has not completely wet out against the printed surface.
Top heat also makes the 363TH well suited for professional finishing workflows involving digitally printed graphics, mounting and board pre-coating.
A 63" maximum laminating width gives the GFP 363TH the capacity required for professional wide format graphics production. Its working width is well suited for finishing output from popular 54", 60" and similar wide format printers used for signs, vehicle graphics, displays and other commercial graphics.
With laminating speeds up to 20 ft/min, the 363TH delivers productive finishing performance for both individual graphics and longer production runs.
Variable speed operation allows the operator to balance throughput with the requirements of the laminate, print and application.
The GFP 363TH includes an integrated rear output rewind for roll-to-roll applications. Finished graphics can be collected as they exit the laminator, reducing manual handling and making long runs easier for the operator to manage.
An integrated top liner rewind simultaneously collects the release liner removed from pressure-sensitive laminate, helping keep the production area organized during operation.
Large 5" diameter main rollers increase dwell time as the graphic passes through the nip, helping apply the heat and pressure required for consistent lamination.
Hand-wheel pressure adjustment provides straightforward control over roller pressure and gap, allowing operators to dial in the machine for different graphics, films and mounting substrates.
The GFP 363TH isn't limited to roll-to-roll lamination. A maximum 1" roller gap allows printed graphics to be applied to compatible rigid boards and substrates for signs, displays, photographs and presentation graphics.
This combination of overlamination and mounting capability allows one machine to handle multiple finishing operations within the shop.
GFP's 3" aluminum Quick-Grip film shafts are designed to make laminate loading and alignment faster and easier. Integrated width measurements help operators position rolls correctly during setup, reducing unnecessary time between jobs.
The swing-up feed table provides convenient access to the roller area when loading and webbing the laminator. Once the machine is ready for production, the table provides a stable working surface for feeding graphics into the roller nip.
Professional on-site installation and operator training is available from USCutter for the GFP 363TH. Adding installation and training can help your team get the laminator properly set up while learning machine operation, material loading and fundamental lamination workflows.
The GFP 363TH is an excellent fit for shops that need 63" heat-assisted production capability without paying for features they may not need. It combines a large working width and 20 ft/min production speed with top heat, 5" rollers, Quick-Grip shafts and an integrated roll-to-roll rewind in a straightforward, operator-friendly platform.
For sign and print shops moving beyond cold lamination or adding a dedicated finishing system to a wide format printer, the 363TH provides the core capabilities needed for professional overlamination, mounting and roll-to-roll production.
The GFP 363TH operates on standard 120V electrical service, making it easier to integrate into many existing sign and print production environments without the higher-voltage electrical requirements of some larger heated finishing systems.
PLEASE NOTE: You must be able to receive a freight shipment. In most cases, this printer can be delivered via a loading dock and/or with on-site forklift. It's the buyers responsibility to determine if they can receive the shipment before purchase. Buyer assumes all responsibility for delivery and delivery costs, additional services, handling fees, equipment rentals, or any additional costs associated with transport of the cargo (to include re-routing, inside delivery, or returns).
If you have any questions, please contact your USCutter Sales Rep at (425) 481-3555
USCutter supplies professional GFP wide format laminators along with pressure-sensitive overlaminates, mounting materials, printable media and finishing accessories. Optional on-site installation and operator training is also available to help businesses integrate the GFP 363TH into a complete wide format print and finishing workflow.
